Introduction

DeWalt continues to push the limits of cordless hammer drills with the 20V Max XR DCD806. It’s designed to be a step up from the DCD805, offering more muscle, smarter safety features, and a compact profile that appeals to both pros and serious DIYers. After hands-on testing, here’s what you need to know.

Design and Build Quality

The DCD806 keeps things light and compact. At just 2.9 lbs (bare) and only 7 inches long, it balances well in hand and slips easily into tighter spots. With a 5.0Ah PowerStack battery, total weight sits at 4.6 lbs, still manageable for overhead work or long days on the job.

Notable design upgrades include:

Three-mode LED work light with 20-minute spotlight setting
Tool Connect chip-ready for digital tracking
Removable belt hook for easy carry
Rugged build quality consistent with DeWalt’s XR line

Performance and Power

This drill is all about power in a compact form. Specs include:

No-load speed: 0–650 / 0–2,000 RPM
Hammer rate: 34,000 BPM
Power output: 1,050 MWO

Compared to the older DCD805 (900 MWO), the DCD806 has a noticeable boost in performance. During testing, it handled:

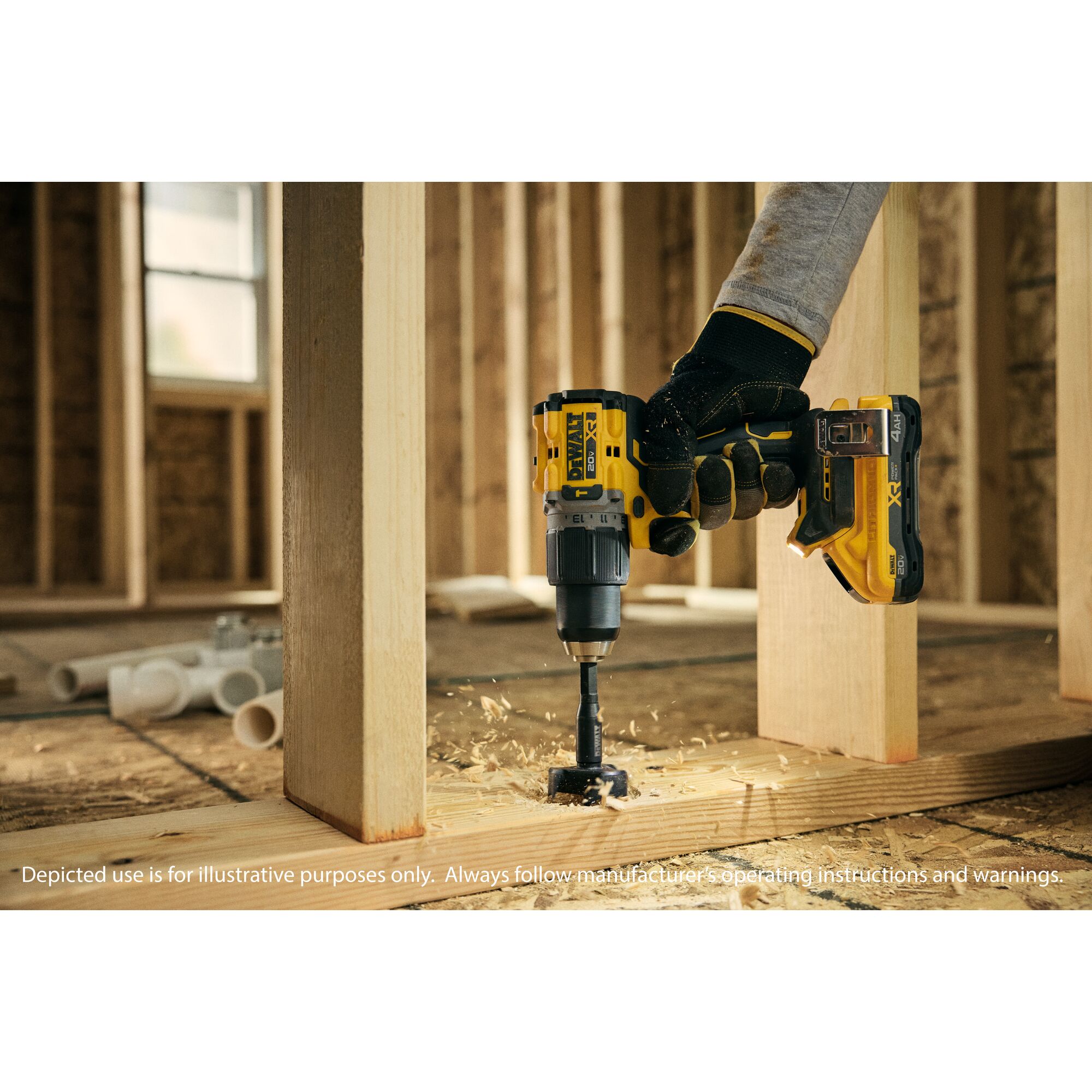

1 ½-inch auger bits
3-inch hole saws
Large spade bits
2 9/16-inch self-feed rough-in bits

For the toughest tasks, you’ll need to switch into low gear, but overall it delivered excellent drilling and driving power.

Safety Upgrade: Anti-Rotation System

A standout feature is the Perform & Protect Anti-Rotation System. If the drill binds up, it instantly shuts down and flashes a red LED to warn you. It works in both forward and reverse and triggers with a smaller arc swing than most competitors.

That’s a big win for safety-conscious DIYers and pros tackling tougher jobs, since kickback is one of the biggest risks when running larger bits.

Comparisons Within DeWalt’s Lineup

Here’s how the DCD806 stacks up:

Model	Power	Hammer Rate	Length	Anti-Kickback	Weight
DCD805 (old)	900 MWO	34,000 BPM	7 in.	No	2.9 lbs
DCD806 (new)	1,050 MWO	34,000 BPM	7 in.	Yes	2.9 lbs
DCD1007 (flagship)	1,530 MWO	38,250 BPM	7.5 in.	Yes	4.1 lbs

The DCD806 lands comfortably between the mid-range 805 and the heavy-duty 1007, making it a versatile all-rounder.

Price and Value

DCD806 bare tool: $199
DCD801 (non-hammer drill version): $179 bare / $269 kit with 4.0Ah batteries

Like most XR tools, it’s backed by DeWalt’s 3-year limited warranty, 1-year service, and 90-day money-back guarantee.

Pros and Cons

Pros:

Stronger power (1,050 MWO) in a compact frame
Kickback protection adds safety edge
Bright 3-mode LED work light
Lightweight and balanced

Cons:

No side handle included (needed for high-torque drilling)
Still an incremental upgrade if you own the DCD805
Bare tool only (extra cost if you need batteries/charger)

Final Verdict

The DeWalt DCD806 Hammer Drill is a compact powerhouse that’s ideal for pros who value portability and safety without sacrificing performance. While not the top of DeWalt’s lineup, it bridges the gap perfectly between light-duty drills and heavy hitters. If you’re buying new, this is a smart pick. If you already own the DCD805, the upgrade may feel minor unless you really want the anti-kickback system.

Rating: 4.5/5 stars 🔨⚡
